Product Details

  • LXR4010C Bulk material ray foreign body detector
  • LXR4010C Bulk material ray foreign body detector

LXR4010C Bulk material ray foreign body detector

Wechat consulting

微信掃碼咨詢
Consult now
+86 0769-86298863

Details

Applicable industries

· This series of radiographic foreign body detectors are mainly designed for bulk products in the food, pharmaceutical and chemical industries. They can effectively detect foreign bodies such as metal foreign bodies, glass, ceramics, hard rubber, resin, bones, shells, stones, etc.
And it is not affected by temperature, humidity, salt or aluminum foil packaging, and has the characteristics of high precision and high reliability.


Product Features

1. No matter how complex the product is, it can also be set through the automatic learning process, and the operation is simple.

2. The unique smart eye algorithm platform adopts the dynamic feature recognition method to automatically select the algorithm parameters and obtain the appropriate sensitivity.

3. The self-learning process only needs 6-10 images, and the algorithm model training can be completed after waiting for about 20 seconds.

4. The server-level Linux system fundamentally guarantees equipment stability and computer virus immunity.

5. The fully sealed design is adopted to deal with the humid environment, the double-layer thermal cycle is adopted to deal with the high temperature environment, and the anti-condensation design is adopted to deal with the temperature difference environment.

6. All purchased parts are high-end accessories to ensure stable operation in harsh environments.

7. The protection level of the equipment detection channel is IP66, which can be washed directly.

8. The X-ray leakage meets the US FDA standard, and the outside of the equipment is less than 1uSv/h.

9. Modular design, customers do not need to re-purchase the host if the production line is upgraded.

10. It only takes a few seconds to disassemble the belt, and it is extremely convenient to disassemble and wash on site.

11. Product configuration and inspection pictures can be automatically saved and exported for analysis.



Technical Data Sheet

model

LXR4010C

ray source

80kV, maximum power 210W

Detection accuracy

Stainless steel ball: 0.3mm; Stainless steel wire: 0.2*2mm   Ceramic glass ball: 1.0mm

Remarks: The size of detectable foreign objects is related to the material composition, packaging material, thickness and other parameters in the product. Please refer to the actual product test results.

operating system

Linux (kernel version 4.10)

Human-computer interaction

17-inch touch LCD monitor

Conveyor speed

5~60m/min

The weight of the product to be inspected

≤10kg

Product size to be inspected

Width≤400mm, height≤100mm

power supply

Single-phase AC220V, 50-60Hz

Temperature and humidity

Ambient temperature 0~45 degrees Celsius, relative humidity 30~85% without condensation

waterproof level

Conveyor is IP66, other parts are IP40

Equipment materials

Full mirror 304 stainless steel

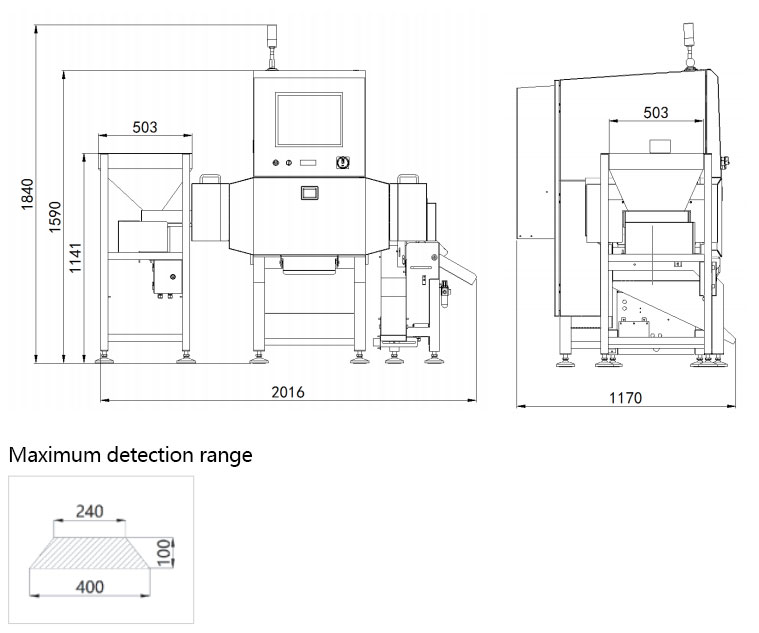

Dimensions
