Product Details

  • LXR3915 low power X-ray foreign object detector
  • LXR3915 low power X-ray foreign object detector

LXR3915 low power X-ray foreign object detector

Wechat consulting

微信掃碼咨詢
Consult now
+86 0769-86298863

Details

Applicable industries

· This series of radiographic foreign body detectors are mainly designed for light and thin products in the food, pharmaceutical and chemical industries. The overall power consumption of the equipment is low. It can effectively detect metal foreign bodies, glass, ceramics, hard rubber, resin, bone,Shells, stones and other foreign objects are not affected by temperature, humidity, salt or aluminum foil packaging, and have the characteristics of high precision and high reliability.This series of ray foreign body detector is mainly designed for light and thin products in the food, medicine and chemical industries. The overall power consumption of the equipment is low. It can effectively detect various foreign bodies such as metal foreign bodies, glass, ceramics, hard rubber, resin, bone, shells, stones, etc., and is not affected by temperature, humidity, salt or aluminum foil and other packaging. It has the characteristics of high precision and reliability.


Product Features

1. The most complex products can also be set through the automatic learning process, which is simple to operate.
2. The unique insight algorithm platform uses dynamic feature recognition method to automatically select algorithm parameters and obtain appropriate sensitivity.
3. The self-learning process only requires 6-10 images, and the algorithm model training can be completed after waiting about 20 seconds.
4. Server level Linux system, which fundamentally guarantees the stability of equipment and immunity of computer viruses.
5. Fully sealed design is adopted to deal with humid environment, double layer thermal cycle is adopted to deal with high temperature environment, and anti condensation design is adopted to deal with temperature difference environment.
6. All purchased parts are high-end accessories to ensure stable operation in harsh environments.
7. The protection level of equipment detection channel is IP66, which can be washed directly.
8. X-ray leakage shall meet the American FDA standard, and the external of the equipment shall be less than 1uSv/h.
9. Modular design. If the production line is upgraded, the customer does not need to purchase the host again.
10. It only takes a few seconds to disassemble the belt, which is very convenient to disassemble and wash on site.
11. Product configuration and detection pictures can be automatically saved and exported for analysis.




Technical Data Sheet

Model

LXR3915

X ray power

80kV, power 80W

Detection sensitivity

Stainless steel ball: φ0.6mm; Stainless steel wire: φ0.4 * 2mm ceramic glass ball: φ1.5mm
Remarks: The size of foreign matters that can be detected is related to the material composition, packaging materials, thickness and other parameters in the product. Please refer to the actual product test results.


operating system

Linux (kernel version 4.10)

Human-computer interaction

17-inch touch LCD monitor

Conveyor speed

5~60m/min

The weight of the product to be inspected

≤5kg

Product size to be inspected

Width≤390mm, height≤150mm

power supply

AC220V, 50-60Hz

Temperature and humidity

Ambient temperature 0~45 degrees Celsius, relative humidity 30~85% without condensation

waterproof level

Conveyor is IP66, other parts are IP40

Equipment materials

Full mirror 304 stainless steel

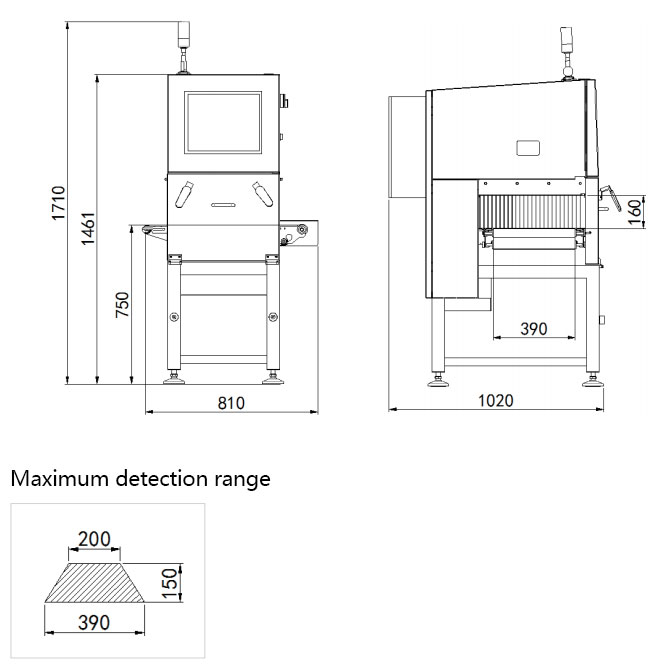

Dimensions
