Product Details

  • LXR2412 Conventional ray foreign body detector
  • LXR2412 Conventional ray foreign body detector

LXR2412 Conventional ray foreign body detector

Wechat consulting

微信掃碼咨詢
Consult now
+86 0769-86298863

Details

Applicable industries

This series of radiographic foreign body detectors are mainly designed for small and medium-sized packaging products in the food, pharmaceutical and chemical industries. They can effectively detect metal foreign bodies, glass, ceramics, hard rubber, resin, bones, shells, stones
It is not affected by packaging such as temperature, humidity, salt or aluminum foil, and has the characteristics of high precision and high reliability.


Product Features

1. With deoxidizer shielding, sealing detection, defect detection, anti-feeding detection and other functions

2. No matter how complex the product is, it is also set through the automatic learning process.

3. The algorithm parameters are automatically selected by the dynamic feature recognition method, and the appropriate sensitivity is obtained.

4. The self-learning process only needs to identify the product 6-10 times, and the algorithm model training can be completed in about 20 seconds

5. Adopt server-level Linux system to fundamentally ensure stability and computer virus immunity.

6. The fully sealed design is adopted to deal with the humid environment, the double-layer thermal cycle is adopted to deal with the high temperature environment, and the anti-condensation design is adopted to deal with the temperature difference environment.

7. All parts are guaranteed to operate normally and stably in harsh environments

8. The protection level of the equipment detection channel is IP66.

9. X-ray leakage meets FDA standards, and the outside of the device is far less than 1uSv/h.

10. With modular design, customers do not need to re-purchase the host if the production line is upgraded.

11. The belt is easy to disassemble and easy to clean, and it only takes a few seconds to complete.

12. Product parameters and inspection pictures can be automatically saved and exported for analysis.



Technical Data Sheet


model

LXR2412

ray source

80kV, power 150W

Detection accuracy

Stainless steel ball: 0.3mm; Stainless steel wire: 0.2*2mm   Ceramic glass ball: 1.0mm

Remarks: The foreign body size of the detectable object is related to the material composition, packaging material, thickness and other parameters in the product. In the actual production environment, please refer to the actual product test results.

operating system

Linux (kernel version 4.10)

Human-computer interaction

17-inch touch LCD monitor

Conveyor speed

5~60m/min

The weight of the product to be inspected

≤5kg

Product size to be inspected

Width≤240mm, height≤120mm

power supply

AC220V, 50-60Hz

Temperature and humidity

Ambient temperature 0~45 degrees Celsius, relative humidity 30~85% without condensation

waterproof level

Conveyor is IP66, other parts are IP40

Equipment materials

Full mirror 304 stainless steel

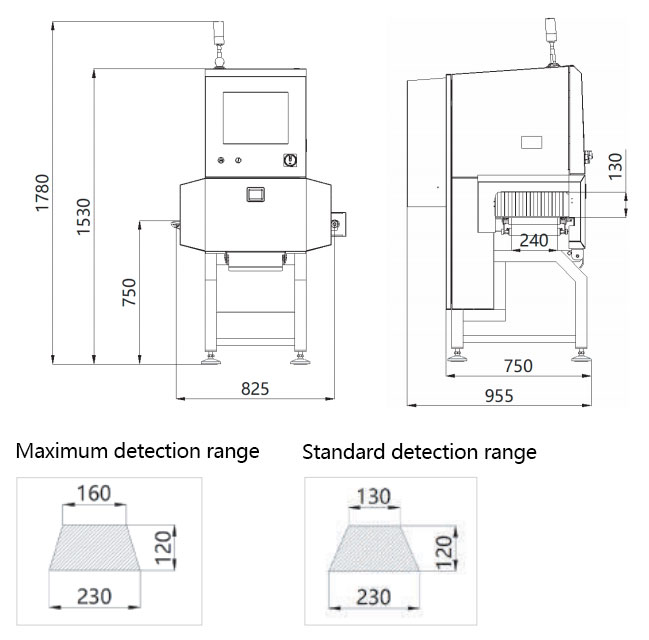

Dimensions
